Elara RWW

Elara RWW

The ELARA RWW is an indoor ceiling-recessed wall washer LED luminaire crafted with an aluminum die-cast bezel and baffle, featuring steel brackets. Its heat sink is constructed from aluminum, ensuring effective heat dissipation. Installation is both easy and tool-free.

Specifications

Technical Specs.

Code No. Watt Lamp Desc. Beam Angle Color Temperature Aiming
4035.17.20.30 17W LED Wallwasher 3000K Fixed


PHYSICAL
Mounting Recessed
Body Die-cast aluminum
Finish White, Black
IP 20
Cutout Diameter (mm) 80
Dimentions (mm) 98 x 89

OPTICAL
Beam angle (˚) Wallwasher
Diffuser finish Clear
Diffuser material Glass
Aiming Fixed

LAMP
Lamp description LED
Watt 17W
Lumen 2004 lm
CRI 90
Color Temperature 3000K

ELECTRICAL
Control Gear Electronic
Input AC:220-240V 50/60Hz

Notes

CCT Options :
2700K, 3000K, 4000K

Driver options :
TRIAC, 1-10V, DALI

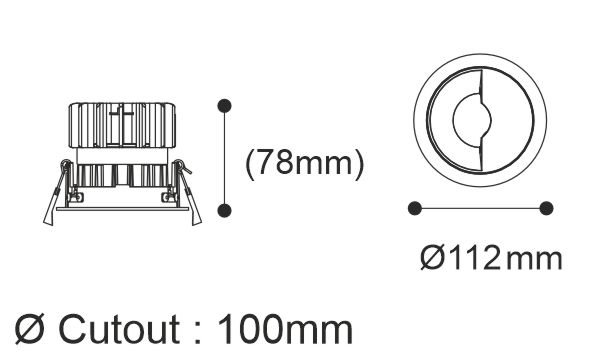

Technical Images
