Elara SWW

Elara SWW

The ELARA SWW is an indoor ceiling-recessed square wall washer LED luminaire crafted with an aluminum die-cast bezel and baffle, featuring steel brackets. Its heat sink is constructed from aluminum, ensuring effective heat dissipation. Installation is both easy and tool-free.

Specifications

Technical Specs.

Code No. Watt Lamp Desc. Beam Angle Color Temperature Aiming
4135.07.20.27 7W LED Wallwasher 2700K Fixed


PHYSICAL
Mounting Recessed
Body Die-cast aluminum
Finish White, Black
IP 20
Cutout Diameter (mm) -

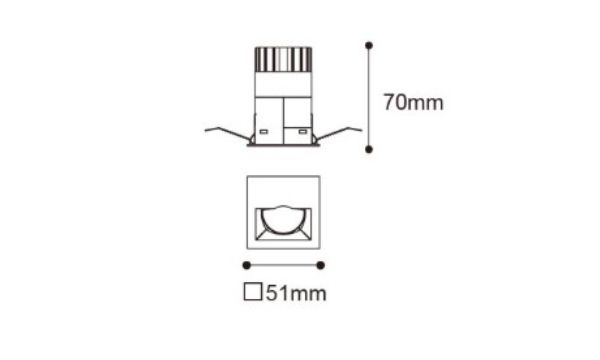

Dimentions (mm) 51 x 51 x 70mm

OPTICAL
Beam angle (˚) Wallwasher
Diffuser finish Clear
Diffuser material Glass
Aiming Fixed

LAMP
Lamp description LED
Watt 7W
Lumen 295 lm
CRI 90
Color Temperature 2700K

ELECTRICAL
Control Gear Electronic
Input 350mA

Notes

Color Temperature Options :

2700K, 3000K, 4000K
