Raya Thin

Raya Thin
5meter length high efficiency adhesive flexible LED strip from the DUVA family RAYA.
Setting an advanced and innovative thermal balance system through passive dessipation with stable color temperature.
Designed for wall or ceiling surface mounted. Luminaire available in IP20/65/67 protection.
With an angle beam of 180º.
available as WW, NW, CW, Red, Blue, Green
50mm Cutting lenght.

Specifications

Technical Specs.

Code No. Watt Lamp Desc. Beam Angle Color Temperature Aiming
45.07.24.65.27 7W/m COB Led 180º 2700K Fixed


PHYSICAL
Mounting Surface
Body Copper FPC board
Finish -
IP IP20 / IP65 / IP67
Cutout Diameter (mm) -
Dimentions (mm) 1.6 x 5 x 5000mm

OPTICAL
Beam angle (˚) 180º
Diffuser finish Clear
Diffuser material Heat shrink sleeve
Aiming Fixed

LAMP
Lamp description COB Led
Watt 7W/m
Lumen 560 lm/m
CRI >90
Color Temperature 2700K

ELECTRICAL
Control Gear Electronic
Input 24V

Notes

Color temperature options :
2700K, 3000K, 4000K, Red, Blue, Green

Lumen Output (+- 5%)
560-630 lm/m

Cutting lenght : 50mm

Working environment : -25ºC ~ +45ºC
Storage environment : -30ºC ~ +80ºC

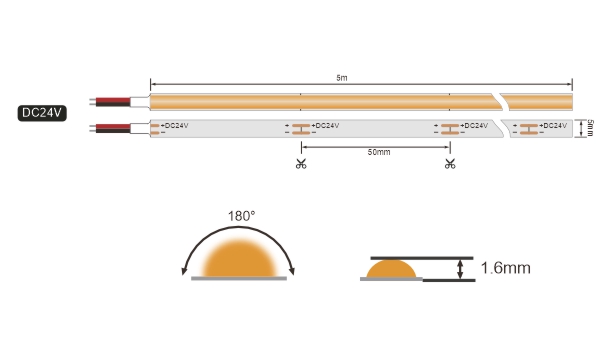

Technical Images
